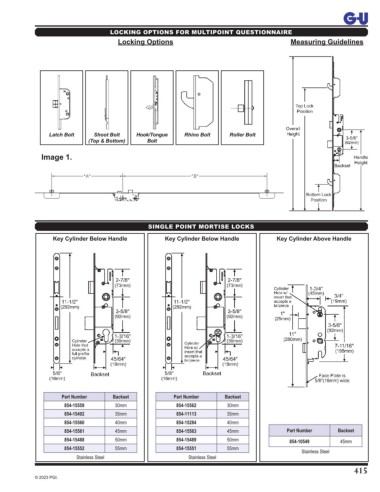

LOCKING OPTIONS FOR MULTIPOINT QUESTIONNAIRE
Locking Options Measuring Guidelines

Latch Bolt Shoot Bolt Hook/Tongue Rhino Bolt Roller Bolt
(Top & Bottom) Bolt

Image 1.

SINGLE POINT MORTISE LOCKS
Key Cylinder Below Handle Key Cylinder Below Handle Key Cylinder Above Handle

Part Number Backset Part Number Backset
854-15559 30mm 854-15562 30mm
854-15492 35mm 854-11113 35mm
854-15560 40mm 854-15284 40mm
854-15561 45mm 854-15563 45mm Part Number Backset
854-15488 50mm 854-15489 50mm 854-10549 45mm
854-15552 55mm 854-15551 55mm
Stainless Steel
Stainless Steel Stainless Steel
415
